RS-HY5030MR6
|
Mode |
RS-HY5030MR6 |
|---|---|
| Chip | Impinj Monza R6 |
| Antenna Size | 50 × 30 mm |
| Frequency | 860 ~ 960 MHz |
| Inlay Thickness | Al 10 μm + PET 50 μm |
| EPC / User / TID Memory | 96 / None / 48 bits |
| Capacity | 3M/Daily |
| MOQ | 1,000 PCS |
-
RS-HY5030MR6 Dry Inlay Datasheet.pdf
| Item | Description |
|
Mode |
RS-HY5030MR6 |
|
Chip |
Impinj Monza R6 |
|
Frequency |
UHF(860 ~ 960 MHz) |
|
Standard |
EPC Class 1 Gen 2; ISO/IEC 18000-6C |
|
Antenna size |
50 × 30 mm |
|
Inlay pitch |
40.005 mm |
|
PET width |
68 mm |
|
Dry Inlay Thickness |
60 μm |
| Material | PET + Al |
| Application | Shipping labels, Clothing listed, Small volume of drugs |

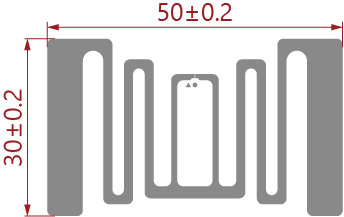

Dry Inlay Dimension

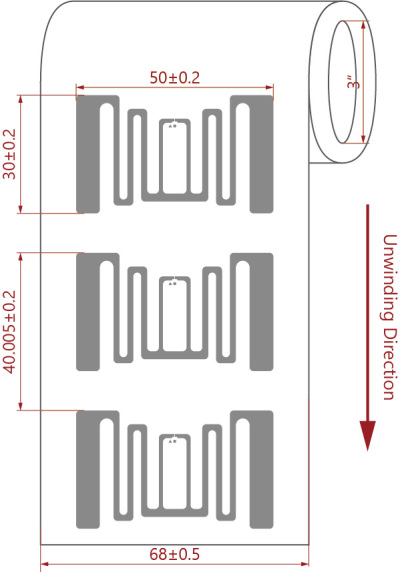

Roll Out Diagram
Layer Structure
Manufacture Process
Company Profile
HY-Link is a professional RFID inlay and label manufacturer since 2003, with
current capacity 3Millions daily and reach 6Billions annually in plan.
The world class facility equipped top brands’ machines from Muehlbauer flip-chip bonding & converting.
As a RAIN member, HY-Link aims the top player of independent inlay assembly hourse serving global market. Constant investment will benefit all partners reliable growth.
Located in Jingjiang China with 2 hours’ drive to Shanghai. With a rich experienced semi-conduction management team over 100 employees.
Attractive price, Super-fast shipping, Professional service and strategic partnership makes multi-wins!
The world class facility equipped top brands’ machines from Muehlbauer flip-chip bonding & converting.
As a RAIN member, HY-Link aims the top player of independent inlay assembly hourse serving global market. Constant investment will benefit all partners reliable growth.
Located in Jingjiang China with 2 hours’ drive to Shanghai. With a rich experienced semi-conduction management team over 100 employees.
Attractive price, Super-fast shipping, Professional service and strategic partnership makes multi-wins!
